Grind # XA235/365-XA242/355-14+4
Duration at .050: 235/242
114 Lobe Center Angle with a 110 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .621"/.604"
Recommended Displacement: 383 & 402-418 Cubic Inch Engines
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 10.5-11.5:1
Recommended Headers: Stock - 1 7/8"
Recommended Stall Converter: 2800-3600
Recommended Rear Axle Ratio: 3.42-4.11
*Compatible with factory intake, high flow aftermarket long runner intake manifolds, dual plane and single plane short runner intake manifolds.

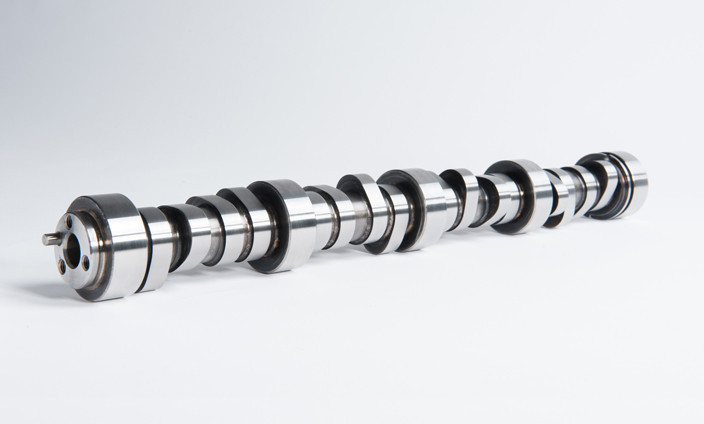

The Torquey Stroker Cathedral Port camshaft is designed for street performance in cars using 383 & 402-418 cubic inch LS engines equipped with cathedral port, LS1 style heads. The Torquey Stroker will have a lopey idle and strong power throughout the RPM range. This camshaft is designed for the enthusiast who wants strong mid-range power and torque and does not mind a little lope to the idle. This camshaft will perform best with intake or exhaust modifications for increased flow. Headers, high flow exhaust, intake system upgrades, increased stall speed torque converter and increased rear axle ratios are recommended.
The Torquey Stroker cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion's cam cores
•Cam Motion .650" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods
•Cam Motion High Performance Hydraulic Lifters
