Grind Number: XA222/345-XA238/340-16+4
Hydraulic Roller Camshaft
Duration at .050": 222/238
116 Lobe Center Angle with a 112 Intake Centerline
Lift with 1.8 Rocker Arm Ratio: .621"/.612"
Recommended Displacement: 6.2 Liter Engines
Cylinder Heads: Gen 5 LT
Recommended Compression Ratio: 8.5-10.5:1
Recommended Headers: Stock Manifolds - 1 7/8" headers
Recommended Stall Converter: Stock Torque Converter - 2800
Recommended Rear Axle Ratio: 2.85-3.90
NOTE: Requires use of Cam Motion VVT Phaser Lock Block

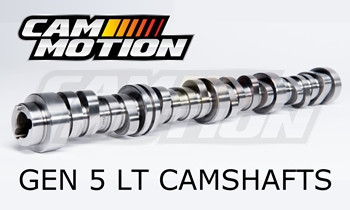

The Gen 5 LT/CS 222/238 Centrifugal Supercharger Camshaft is designed for street performance in cars using 6.2 liter LT engines. The Gen 5 LT/CS 222/238 Centrifugal Supercharger Cam will have a mild performance idle and strong midrange power. This camshaft is designed to be used in completely stock vehicles but vehicles equipped with headers, high flow exhaust, increased stall speed torque converter, high flow intake systems and increased rear axle ratios will enjoy additional performance benefits.
If you are looking for a performance cam that you can daily drive, this camshaft is a great choice.
The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 steel alloy camshaft cores.
NOTE: This camshaft is designed to be used with the phaser locked, or our VVT Phaser Delete Kit. Failure to lock the phaser or use our VVT Phaser Delete Kit when using this camshaft can result in serious engine damage! For more information, contact Cam Motion technical support.
•Cam Motion .660" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods
•Cam Motion VVT Phaser Lock Block
•Cam Motion VVT Spring Lock Tool
